Windows Driver – 通过IDA逆向分析.sys

背景：因业务需要规划下一代PCIe SD host的Windows驱动，要支持Win11和以后的最新特性，因为现有的SD驱动是基于Storport-miniport架构，在Win11上有诸多限制严重影响业务，因此决定转型为WDF驱动。本文浅显分析Realtek的Win11 PCIe SD Card reader驱动是用什么架构，内部如何实现。

IDA反汇编工具

IDA能将二进制文件反汇编(disassemble)成为汇编代码，还支持将汇编代码进一步显示成C代码(decompile)。

下载IDA free版本就够用

https://hex-rays.com/products/ida/support/%20download_freeware%20/

IDA分析驱动.sys文件

IDA常用快捷键

F5：汇编代码转C代码显示（IDA称为伪代码，因为不是纯C）

Shift + F12：显示所有符号的字符串。可以全览所有函数，弄清用的什么技术栈

x：查看函数和变量的交叉引用，即被谁调用

esc：返回上个页面位置

驱动分析示例

RtsPer.sys下载

https://www.driverscloud.com/en/services/GetInformationDriver/75616-0/realtek-cardreader-win10-win11-1002262121361zip

INF分析

[Version]
Signature="$Windows NT$"
Class=MTD
ClassGuid = {4d36e970-e325-11ce-bfc1-08002be10318}
Provider=%RTS%
CatalogFile = RtsPer64.cat
DriverVer=11/14/2022,10.0.22621.21361

... 以下以Rts5227CR为例

[DestinationDirs]
CopyFilesSYS = 12     ; should it be 10 to take care of 98 stuff
CopyFilesDLL = 11     ; %SystemRoot%\system or system32 - 98 or Win2000
CopyFilesDLL64 = 10,SysWOW64

[Manufacturer]
%VENDOR%=Vendor, NTamd64

[Vendor.NTamd64]
%Rts5227CR%=RTS5264.Inst, PCI\VEN_10EC&DEV_5264&CC_FF00

[RTS5264.Inst.ntamd64]
CopyFiles = CopyFilesSYS, CopyFilesDLL64

[RTS5264.Inst.NTamd64.HW]
AddReg=MsiEnable_addreg

[RTS5264.Inst.ntamd64.Services]
AddService = RTSPER, 0x00000002, RTS5264_Service_Inst

[RTS5264_Service_Inst]
DisplayName    = %Rts5227PER%
ServiceType    = %SERVICE_KERNEL_DRIVER%
StartType      = %SERVICE_DEMAND_START%
ErrorControl   = %SERVICE_ERROR_IGNORE%
ServiceBinary  = %12%\RtsPer.sys
AddReg         = RTS5264.AddReg

[RTS5264.AddReg]
HKR,"RTS5264","MSIEnable",0x10001,1
HKR,"RTS5264","FirstLoad",0x10001,1
HKR,"RTS5264","NonRemovable",0x10001,1
HKR,"RTS5264","SupportPoFx",0x10001,1
HKR,"Parameters","DmaRemappingCompatible",0x10001,1

[Strings]
;Localizable Strings needed for HBA naming in Windows UI
;*******************************************
;Non-Localizable strings
RTS = "Realtek Semiconductor Corp."
VENDOR         = "Realtek Semiconductor Corp."
Rts5227CR      = "Realtek PCIE CardReader"
Rts5227PER      = "Realtek PCIE Card Reader - PER"
DiskDesc = "Realtek PCIE Card Reader Source Disk"
DriverVersion = "10.0.22621.21361"
SERVICE_ASSOCSERVICE = 0x00000002
SERVICE_BOOT_START     = 0x0
SERVICE_SYSTEM_START   = 0x1
SERVICE_AUTO_START     = 0x2
SERVICE_DEMAND_START   = 0x3
SERVICE_DISABLED       = 0x4
SERVICE_KERNEL_DRIVER  = 0x1
SERVICE_ERROR_IGNORE   = 0x0
SERVICE_ERROR_NORMAL   = 0x1
SERVICE_ERROR_SEVERE   = 0x2
SERVICE_ERROR_CRITICAL = 0x3
REG_EXPAND_SZ          = 0x00020000
REG_DWORD              = 0x00010001
REG_MULTI_SZ           = 0x00010000
REG_BINARY             = 0x00000001
REG_SZ                 = 0x00000000

设备类型是MTD：Memory Technology Driver

https://learn.microsoft.com/en-us/windows-hardware/drivers/install/system-defined-device-setup-classes-available-to-vendors

从INF可以推测：

（1）这是SD host设备的驱动，直连PCIe接口（没通过USB），作用是SD card的控制器。

（2）没有用WDF(KMDF)框架，因为KMDF的INF一般定义KmdfService字段，以上INF没有定义。

（3）结合Windows Driver Sample，MTD类属于SD BUS/Device的设备驱动，但微软的SD框架不支持SD BUS只支持SD Device，因此该驱动应该是用WDM写的SD BUS驱动，不是依赖于微软的SD BUS框架。

INF详细WDK 文档：https://learn.microsoft.com/en-us/windows-hardware/drivers/install/looking-at-an-inf-file

.sys分析

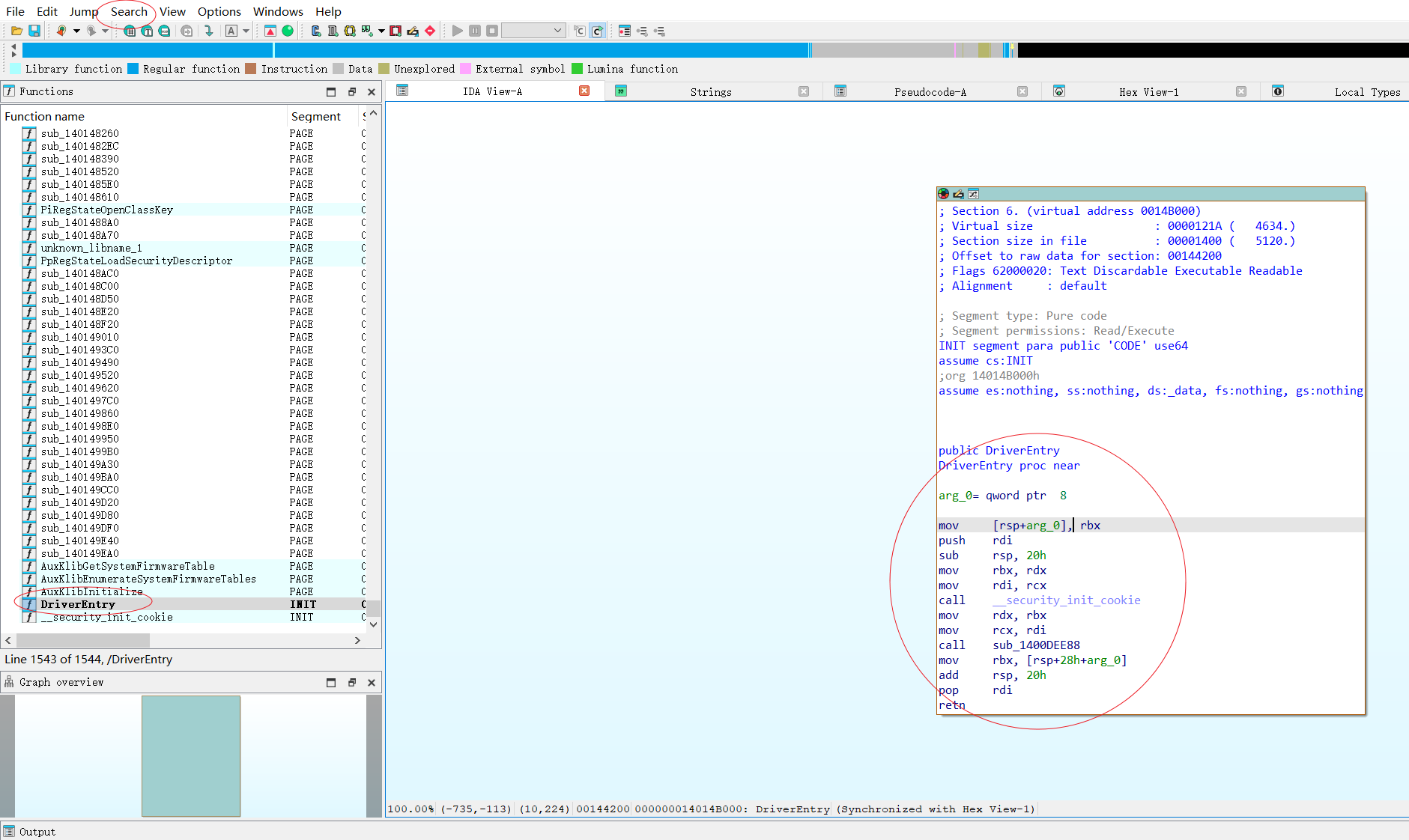

IDA打开.sys (有pdb文件更好)，找到DriverEntry入口

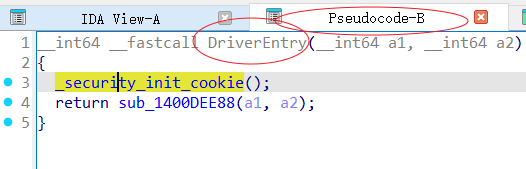

F5显示成C伪代码，可以双击函数跳转

详细分析一下Driver Entry做了什么：

__int64 __fastcall sub_1400DEE88(_QWORD *a1) //DriverEntry主功能在这里实现，所有叫sub_xxx函数都是没有符号表解析不出名字的函数，看函数体即可.
{
  __int64 CurrentThreadId; // rax
  __int64 v3; // rax
  __int64 v4; // rcx
  __int64 v5; // rax
  __int64 v7; // [rsp+30h] [rbp-148h]
  struct _OSVERSIONINFOW VersionInformation; // [rsp+40h] [rbp-138h] BYREF

  CurrentThreadId = PsGetCurrentThreadId(); //获取当前线程ID
  sub_1400DE608( //根据函数体，这里只是个打印函数，打印当前时间和线程ID.
    2LL,
    "%I64d (%d) %s : -> DriverEntry built on %s at %s \n",
    (MEMORY[0xFFFFF78000000008] - qword_140140278) / 0x2710uLL,
    CurrentThreadId,
    "DriverEntry",
    "Nov 14 2022",
    "15:12:36");
  v3 = PsGetCurrentThreadId();
  sub_1400DE608(
    2LL,
    "%I64d (%d) %s : -> DriverEntry Driver version : %s \n",
    (MEMORY[0xFFFFF78000000008] - qword_140140278) / 0x2710uLL,
    v3,
    "DriverEntry",
    "10.0.22621.21361");
  VersionInformation.dwOSVersionInfoSize = 276;
  if ( RtlGetVersion(&VersionInformation) >= 0 //获取操作系统版本
    && (VersionInformation.dwMajorVersion > 6
     || VersionInformation.dwMajorVersion == 6 && VersionInformation.dwMinorVersion >= 2) )
  {
    dword_140140110 = 512;
    dword_140140114 = 0x40000000;
  }
  qword_140140278 = MEMORY[0xFFFFF78000000008];
  sub_1400DEC80();
  sub_1400109EC();
  a1[28] = sub_140003340; //sub_xxx都是函数，所以这里是注册很多回调，根据WDM开发一般是PNP回调
  a1[29] = sub_1400057A0;
  a1[36] = sub_1400EFA30;
  a1[13] = sub_1400E0670;
  v4 = a1[6];
  a1[41] = sub_1400E5480;
  a1[14] = sub_140003000;
  a1[16] = sub_140002DC0;
  a1[32] = sub_140002910;
  a1[30] = sub_140008B40;
  a1[37] = sub_1401071C0;
  a1[18] = sub_140006EA0;
  a1[17] = sub_140006EA0;
  *(_QWORD *)(v4 + 8) = sub_1400DF0F0;
  sub_1400011E4();
  sub_1400E0188();
  v5 = PsGetCurrentThreadId();
  LODWORD(v7) = 0;
  sub_1400DE608(
    0x2000LL,
    "%I64d (%d) %s : <- %s, ret = 0x%x\n",
    (MEMORY[0xFFFFF78000000008] - qword_140140278) / 0x2710uLL,
    v5,
    "DriverEntry",
    "DriverEntry",
    v7);
  return 0LL;
}

具体看一下注册的回调函数的内容：在函数上按x找到所有引用，再F5查看C伪代码

__int64 __fastcall sub_1400057A0(__int64 a1, __int64 a2)
{
  __int64 v2; // rdi
  __int64 CurrentThreadId; // rax
  unsigned int v5; // ebx
  __int64 v6; // rax
  int v8; // [rsp+30h] [rbp-18h]

  v2 = *(_QWORD *)(a1 + 64);
  if ( *(_BYTE *)v2 != 1 )
    return sub_1400058A0();
  CurrentThreadId = PsGetCurrentThreadId();
  sub_1400DE608(
    0x2000,
    "%I64d (%d) %s : -> %s\n",
    (MEMORY[0xFFFFF78000000008] - qword_140140278) / 0x2710uLL,
    CurrentThreadId,
    "rts_internalctrl",
    "rts_internalctrl");
  ++*(_BYTE *)(a2 + 67);
  *(_QWORD *)(a2 + 184) += 72LL;

  //注意这个IofCallDriver，用于转发IRP给设备的driver function.
  //可以推测DriverEntry注册的那些回调函数就是注册PNP请求列表对应的处理函数
  //这里仅转发，真正的处理逻辑还在下层函数
  v5 = IofCallDriver(*(_QWORD *)(v2 + 16), a2);
  v6 = PsGetCurrentThreadId();
  v8 = v5;
  sub_1400DE608(
    0x2000,
    "%I64d (%d) %s : <- %s, ret = 0x%x\n",
    (MEMORY[0xFFFFF78000000008] - qword_140140278) / 0x2710uLL,
    v6,
    "rts_internalctrl",
    "rts_internalctrl",
    v8);
  return v5;
}

PNP的回调函数参考：https://learn.microsoft.com/en-us/windows-hardware/drivers/kernel/dispatchpnp-routines

全览.sys有哪些函数符号

用shift + F12打开strings页面，ctrl+F 搜索关键词，选中结果后删除搜索框去浏览上下文。

以DriverEntry为例，符号字符上下文如下，符号的地址分布是连续的，不考虑跳转可视为调用顺序。

.text:000000014012A550	0000000C	C	DriverEntry //入口
.text:000000014012A560	00000033	C	%I64d (%d) %s : -> DriverEntry built on %s at %s \n
.text:000000014012A5A0	00000035	C	%I64d (%d) %s : -> DriverEntry Driver version : %s \n
.text:000000014012A5E0	0000000B	C	rts_unload
.text:000000014012A5F0	00000031	C	%I64d (%d) %s : -> Driver Unload, version : %s \n
.text:000000014012A630	00000031	C	%I64d (%d) %s : <- Driver Unload, version : %s \n
.text:000000014012A670	0000000E	C	rts_adddevice
.text:000000014012A6C0	00000031	C	%I64d (%d) %s : Failed to create device object \n
.text:000000014012A700	00000031	C	%I64d (%d) %s : fdx is 0x%p, PAGE_SIZE is 0x%x \n
.text:000000014012A740	00000035	C	%I64d (%d) %s : IoAttachDeviceToDeviceStack failed \n

//操作系统判断，为了后面差异化配置

.text:000000014012A780	0000001E	C	%I64d (%d) %s : OS is Win10 \n
.text:000000014012A7A0	00000020	C	%I64d (%d) %s : OS is WinBlue \n
.text:000000014012A7C0	0000001D	C	%I64d (%d) %s : OS is Win8 \n
.text:000000014012A7E0	0000001D	C	%I64d (%d) %s : OS is Win7 \n
.text:000000014012A800	00000024	C	%I64d (%d) %s : OS is Server 2008 \n
.text:000000014012A830	0000001E	C	%I64d (%d) %s : OS is VISTA \n
.text:000000014012A850	00000024	C	%I64d (%d) %s : OS is Server 2003 \n
.text:000000014012A880	0000001E	C	%I64d (%d) %s : OS is WinXp \n
.text:000000014012A8A0	0000001E	C	%I64d (%d) %s : OS is Win2k \n
.text:000000014012A8C0	00000023	C	%I64d (%d) %s : OS is NotDefined \n
.text:000000014012A8F0	0000001E	C	%I64d (%d) %s : OS is 64bit \n
.text:000000014012A910	0000003A	C	%I64d (%d) %s : rts_pcie_init_bus_interface failed (%x) \n
.text:000000014012A950	00000035	C	%I64d (%d) %s : rts_pcie_get_dev_info failed: 0x%x \n
.text:000000014012A990	0000003B	C	%I64d (%d) %s : IoRegisterDeviceInterface failed with %x \n
.text:000000014012A9D0	00000032	C	%I64d (%d) %s : GetMcfgEntryFromAuxKlib success \n
.text:000000014012AA10	00000031	C	%I64d (%d) %s : GetMcfgEntryFromAuxKlib failed \n
.text:000000014012AA50	0000002E	C	%I64d (%d) %s : GetMcfgEntryFromReg success \n
.text:000000014012AA80	0000002D	C	%I64d (%d) %s : GetMcfgEntryFromReg failed \n
.text:000000014012AAB0	00000027	C	%I64d (%d) %s : host_cfg_disable: %d \n
.text:000000014012AAE0	00000034	C	%I64d (%d) %s : bMcfgEntry %d, BaseAddr is 0x%llx \n

//初始化DPC，PDO; Rts自定义的PNP/POFX回调函数也初始化（估计是绑定到函数指针数组）

.text:000000014012AB20	00000041	C	%I64d (%d) %s : initialize the DPC NoSSDpcWorkItemPendingEvent \n
.text:000000014012AB70	00000039	C	%I64d (%d) %s : IoRegisterShutdownNotification success \n
.text:000000014012ABB0	0000003B	C	%I64d (%d) %s : IoRegisterShutdownNotification fail 0x%x \n
.text:000000014012ABF0	00000015	C	rts_create_child_pdo
.text:000000014012AC10	0000005A	C	%I64d (%d) %s : Create Pdo %i successfully, status is 0x%x, Child->ReferenceCount is %i \n
.text:000000014012AC70	00000035	C	%I64d (%d) %s : Create Pdo %i fail with status 0x%x\n
.text:000000014012ACE0	00000017	C	rts_init_pofx_routines
.text:000000014012AD00	0000002D	C	%I64d (%d) %s : pPoFxActivateComponent=0x%p\n
.text:000000014012AD60	00000029	C	%I64d (%d) %s : pPoFxIdleComponent=0x%p\n
.text:000000014012ADC0	0000002C	C	%I64d (%d) %s : pPoFxSetComponentWake=0x%p\n
.text:000000014012AE20	0000002D	C	%I64d (%d) %s : pPoFxCompleteIdleState=0x%p\n
.text:000000014012AE90	00000031	C	%I64d (%d) %s : pPoFxCompleteIdleCondition=0x%p\n
.text:000000014012AF10	00000031	C	%I64d (%d) %s : pPoFxReportDevicePoweredOn=0x%p\n
.text:000000014012AFA0	0000003A	C	%I64d (%d) %s : pPoFxCompleteDevicePowerNotRequired=0x%p\n
.text:000000014012B010	0000002A	C	%I64d (%d) %s : pPoFxRegisterDevice=0x%p\n
.text:000000014012B070	0000002C	C	%I64d (%d) %s : pPoFxUnregisterDevice=0x%p\n
.text:000000014012B0E0	00000036	C	%I64d (%d) %s : pPoFxStartDevicePowerManagement=0x%p\n
.text:000000014012B160	00000035	C	%I64d (%d) %s : pPoFxCompleteDirectedPowerDown=0x%p\n

//从注册表拿到用户自定义的功能配置信息

.text:000000014012B1B0	00000014	C	GetMcfgEntryFromReg
.text:000000014012B220	00000028	C	%s : Get SubKey %ws, Update Key to %ws\n
.text:000000014012B250	0000003F	C	%I64d (%d) %s : EnumOneSubValue return %d, pMcfgSdtTabke 0x%x\n
.text:000000014012B290	00000023	C	%I64d (%d) %s : NULL == pMcfgAddr\n
.text:000000014012B2C0	00000018	C	GetMcfgEntryFromAuxKlib
.text:000000014012B2E0	00000030	C	%I64d (%d) %s : Enum firmware table return %#x\n
.text:000000014012B310	00000041	C	%I64d (%d) %s : AuxKlibEnumerateSystemFirmwareTables return %#x\n
.text:000000014012B360	00000023	C	%I64d (%d) %s : cannot find MCFG \n
.text:000000014012B390	0000002C	C	%I64d (%d) %s : Get MCFG Table as follow: \n
.text:000000014012B3C0	00000031	C	%I64d (%d) %s : Allocate for MCFG table failed \n
.text:000000014012B400	0000000E	C	EnumOneSubKey
.text:000000014012B410	00000029	C	%s : Open register key %ws failed, 0x%x\n
.text:000000014012B440	00000010	C	EnumOneSubValue
.text:000000014012B450	00000026	C	%I64d (%d) %s : Allocate pfi failed \n
.text:000000014012B480	00000027	C	%I64d (%d) %s : Allocate pvfi failed \n
.text:000000014012B4B0	00000024	C	%I64d (%d) %s : DataLength is 0x%x\n
.text:000000014012B4E0	0000000E	C	ParseSdtTable
.text:000000014012B4F0	0000002F	C	%I64d (%d) %s : Check physical address %#llx \n
.text:000000014012B520	0000002D	C	%I64d (%d) %s : Check physical address %#x \n

//从PCIe bridge拿到SD host设备信息，包括能力寄存器，电源ASPM等

.text:000000014012B550	00000018	C	rts_get_pci_bridge_info
.text:000000014012B570	00000048	C	%I64d (%d) %s : Single Function Device: bus = %#x, dev = %#x, func=%#x\n
.text:000000014012B5C0	0000003C	C	%I64d (%d) %s : Find Device(%X:%X)  bus=%d dev=%d, func=%d\n
.text:000000014012B600	00000031	C	%I64d (%d) %s : Save host configure space 0x%p \n
.text:000000014012B640	00000033	C	%I64d (%d) %s : Cannot Find PciBridge for Device \n
.text:000000014012B680	0000001B	C	rts_get_dev_link_ctl_field
.text:000000014012B6A0	00000039	C	%I64d (%d) %s : Get PCI_COMMON_CONFIG fail, ulResult=%d\n
.text:000000014012B6E0	00000033	C	%I64d (%d) %s : Get linkCtrlReg fail, ulResult=%d\n
.text:000000014012B720	00000022	C	%I64d (%d) %s : linkCtrlReg 0x%x\n
.text:000000014012B750	00000022	C	rts_get_bridge_link_control_field
.text:000000014012B780	0000002E	C	%I64d (%d) %s : fail to find PCIe Capability\n
.text:000000014012B7B0	0000003B	C	%I64d (%d) %s : CapabilityOffset - Config from MMCFG 0x%x\n
.text:000000014012B7F0	00000038	C	%I64d (%d) %s : CapabilityOffset - Config from IO 0x%x\n
.text:000000014012B830	00000038	C	%I64d (%d) %s : CapabilityHdr - Config from MMCFG 0x%x\n
.text:000000014012B870	00000035	C	%I64d (%d) %s : CapabilityHdr - Config from IO 0x%x\n
.text:000000014012B8B0	00000036	C	%I64d (%d) %s : LinkCtrlReg - Config from MMCFG 0x%x\n
.text:000000014012B8F0	00000033	C	%I64d (%d) %s : LinkCtrlReg - Config from IO 0x%x\n
.text:000000014012B930	00000048	C	%I64d (%d) %s : pciBridgePCIeHdrOffset 0x%x, pciBridgeLinkCtrlReg 0x%x\n
.text:000000014012B980	0000002D	C	%I64d (%d) %s : Cannot Find PCIe Capability\n
.text:000000014012B9B0	00000038	C	%I64d (%d) %s : cannot find the Bus of PCI,do nothing \n
.text:000000014012B9F0	00000023	C	%I64d (%d) %s : MapPhyMem failed \n
.text:000000014012BA20	0000005F	C	%I64d (%d) %s : PciBridge BusNumber[%x], DevNumbe[%x], FuncNumber[%x], Write reg[0x%x] = 0x%x\n
.text:000000014012BA80	00000016	C	rts_disable_host_aspm
.text:000000014012BAA0	0000004A	C	%I64d (%d) %s : recognize the Bus of PCI(Bridge) as UNKNOWN, do nothing \n
.text:000000014012BAF0	0000001F	C	%I64d (%d) %s : PhyAddr 0x%x \n
.text:000000014012BB10	0000002A	C	%I64d (%d) %s : Offset 0x%x, Value 0x%x \n
.text:000000014012BB40	00000012	C	rts_set_host_aspm
.text:000000014012BB60	0000002A	C	%I64d (%d) %s : Offset 0x%x, value 0x%x \n
.text:000000014012BB90	00000012	C	rts_get_host_aspm
.text:000000014012BBB0	0000001D	C	rts_pci_find_host_capability
.text:000000014012BBD0	00000019	C	cr_read_host_config_byte
.text:000000014012BBF0	0000001A	C	cr_write_host_config_byte
.text:000000014012BC10	0000002F	C	%I64d (%d) %s : Write configure through MMIO \n
.text:000000014012BC40	00000007	C	UNKNOW

//以下是PNP的回调函数的注册（函数指针绑定），具体函数体实现在rts_pnp_fdo

.text:000000014012BC70	00000011	C	DispatchPnP_Fdo
.text:000000014012BC90	0000000C	C	rts_pnp_fdo
.text:000000014012BCA0	0000001E	C	%I64d (%d) %s : -> %s %s %s \n
.text:000000014012BCC0	00000032	C	%I64d (%d) %s : rts_pnp_fdo: fdx DeviceState %i \n
.text:000000014012BD00	00000052	C	%I64d (%d) %s : IRP_MN_REMOVE_DEVICE, NotStarted == fdx->DeviceState, do nothing\n
.text:000000014012BD60	0000002D	C	%I64d (%d) %s : Removed == fdx->DeviceState\n
.text:000000014012BD90	00000028	C	%I64d (%d) %s : call rts_ss_cancel_ss \n
.text:000000014012BDD0	0000004F	C	%I64d (%d) %s : MSI not enable,IRP_MN_FILTER_RESOURCE_REQUIREMENTS to default\n
.text:000000014012BE20	00000035	C	%I64d (%d) %s : Unprocessed pnp,to default process \n
.text:000000014012BE60	00000011	C	DispatchPnP_Pdo
.text:000000014012BE80	0000000C	C	rts_pnp_pdo
.text:000000014012BE90	00000061	C	%I64d (%d) %s : NULL == Fdo, not IRP_MN_REMOVE_DEVICE,so return fail with STATUS_DELETE_PENDING\n
.text:000000014012BF00	00000037	C	%I64d (%d) %s : Removed == fdx->DeviceState, so quit \n
.text:000000014012BF40	00000027	C	%I64d (%d) %s : NULL == fdx, so quit \n
.text:000000014012BF70	0000001F	C	%I64d (%d) %s : BusRelations \n
.text:000000014012BF90	00000024	C	%I64d (%d) %s : EjectionRelations \n
.text:000000014012BFC0	00000021	C	%I64d (%d) %s : PowerRelations \n
.text:000000014012BFF0	00000023	C	%I64d (%d) %s : RemovalRelations \n
.text:000000014012C020	00000027	C	%I64d (%d) %s : TargetDeviceRelation \n
.text:000000014012C050	00000097	C	%I64d (%d) %s : deviceCapabilities->Removable is %i,deviceCapabilities->SurpriseRemovalOK is %i,deviceCapabilities->UniqueID is %i, ntStatus is 0x%x \n
.text:000000014012C0F0	00000017	C	rts_tr_pcie_option_set
.text:000000014012C110	00000024	C	%I64d (%d) %s : sd_capability=%#x \n
.text:000000014012C140	00000023	C	%I64d (%d) %s : card_spt_map=%#x \n
.text:000000014012C170	0000002D	C	%I64d (%d) %s : cr->option.dev_flags = %#x \n
.text:000000014012C1A0	0000002F	C	%I64d (%d) %s : cr->option.patch_flags = %#x \n

//以下是设备资源分配（xxx_alloc）和硬件寄存器值初始化（bios_setting/init_hw），由于是PCIe的SD host设备，主要分配SD host设备空间到PCIe bar地址

.text:000000014012C1D0	00000045	C	%I64d (%d) %s : DriverFirstLoad, set delink_delay_max_cnt to %d ms \n
.text:000000014012C220	00000026	C	%I64d (%d) %s : Clar firstload flag \n
.text:000000014012C250	00000036	C	%I64d (%d) %s : fdx->cr->option.remote_wakeup_en=%#x\n
.text:000000014012C290	00000038	C	%I64d (%d) %s : fdx->CurrentPara->remote_wakeup_en=%#x\n
.text:000000014012C2D0	00000036	C	%I64d (%d) %s : fdx->cr->option.host_cfg_disable=%#x\n
.text:000000014012C310	00000020	C	rts_tr_pcie_backup_bios_setting
.text:000000014012C330	00000015	C	rts_cr_bind_together
.text:000000014012C350	0000002F	C	%I64d (%d) %s : cr=%p, cm =%p, tr=%p, scsi=%p\n
.text:000000014012C380	00000033	C	%I64d (%d) %s : cr->cm=%p, cr->tr=%p, cr->scsi=%p\n
.text:000000014012C3C0	00000033	C	%I64d (%d) %s : cm->cr=%p, cm->tr=%p, scsi->cr=%p\n
.text:000000014012C400	0000000B	C	scsi_alloc
.text:000000014012C410	0000002E	C	%I64d (%d) %s : Unable to allocate the scsi \n
.text:000000014012C440	0000000D	C	scsi_release
.text:000000014012C450	0000001B	C	rts_option_set_bef_init_hw
.text:000000014012C470	00000059	C	%I64d (%d) %s : read config addr 0x0E to judge multi function fail, bytesread(%i) != 1 \n
.text:000000014012C4D0	00000036	C	%I64d (%d) %s : read config addr 0x0E success(0x%x) \n
.text:000000014012C510	00000006	C	multi
.text:000000014012C520	00000007	C	single
.text:000000014012C530	00000029	C	%I64d (%d) %s : Device is %s-functioned\n
.text:000000014012C560	0000002F	C	%I64d (%d) %s : fdx->cr->option.adma_mode %d \n
.text:000000014012C590	0000001D	C	rts_option_set_after_init_hw
.text:000000014012C5B0	0000002C	C	%I64d (%d) %s : option.cq_rand_enable = %d\n
.text:000000014012C5E0	0000002B	C	%I64d (%d) %s : option.cq_seq_enable = %d\n
.text:000000014012C610	00000030	C	%I64d (%d) %s : option.cq_ban_card_enable = %d\n
.text:000000014012C640	00000020	C	Realtek PCIE Card Reader Driver
.text:000000014012C660	00000011	C	rts_cr_init_comm
.text:000000014012C680	0000001E	C	%I64d (%d) %s : %s detected \n
.text:000000014012C6A0	00000023	C	%I64d (%d) %s : option->ss_en %d \n
.text:000000014012C6D0	00000013	C	rts_cr_uninit_comm

//以下是电源管理POFX的回调函数的注册（函数指针绑定），具体实现在rts_pofx/dfx

.text:000000014012C6F0	00000018	C	ActiveConditionCallback
.text:000000014012C710	0000003A	C	%I64d (%d) %s : ===><=== -> PoFx ActiveConditionCallback\n
.text:000000014012C750	0000003A	C	%I64d (%d) %s : ===><=== <- PoFx ActiveConditionCallback\n

.text:000000014012C790	00000016	C	IdleConditionCallback
.text:000000014012C7B0	00000038	C	%I64d (%d) %s : ===><=== -> PoFx IdleConditionCallback\n
.text:000000014012C7F0	00000038	C	%I64d (%d) %s : ===><=== <- PoFx IdleConditionCallback\n
.text:000000014012C830	00000012	C	IdleStateCallback
.text:000000014012C850	0000003E	C	%I64d (%d) %s : ===><=== -> PoFx IdleStateCallback, State=%d\n
.text:000000014012C890	00000034	C	%I64d (%d) %s : ===><=== <- PoFx IdleStateCallback\n

.text:000000014012C8D0	0000001C	C	DevicePowerRequiredCallback
.text:000000014012C8F0	00000037	C	%I64d (%d) %s : ===> PoFx DevicePowerRequiredCallback\n
.text:000000014012C930	00000041	C	%I64d (%d) %s : PoFx DeviePowerRequiredCallback:queue work item\n
.text:000000014012C980	00000053	C	%I64d (%d) %s : PoFx DeviePowerRequiredCallback:Cannot alloc memory for work item\n
.text:000000014012C9E0	0000002A	C	%I64d (%d) %s :  fdx->PoFxActive = TRUE \n
.text:000000014012CA10	0000003E	C	%I64d (%d) %s : ===><=== <- PoFx DevicePowerRequiredCallback\n

.text:000000014012CA50	0000001F	C	DevicePowerNotRequiredCallback
.text:000000014012CA70	0000003A	C	%I64d (%d) %s : ===> PoFx DevicePowerNotRequiredCallback\n
.text:000000014012CAB0	00000043	C	%I64d (%d) %s : ===><=== PoFx pPoFxCompleteDevicePowerNotRequired\n
.text:000000014012CB00	0000002B	C	%I64d (%d) %s :  fdx->PoFxActive = FALSE \n
.text:000000014012CB30	0000003A	C	%I64d (%d) %s : <=== PoFx DevicePowerNotRequiredCallback\n

//以下是电源管理POFX的回调函数体实现，rts_xxx_pofx

.text:000000014012CB70	00000025	C	rts_dev_pwr_completion_for_DFx_child
.text:000000014012CBA0	0000004A	C	%I64d (%d) %s : powerContext->DeviceObject is 0x%p, DeviceObject is 0x%p\n
.text:000000014012CBF0	00000027	C	%I64d (%d) %s : IoStatus->Status=%#x \n

.text:000000014012CC20	0000001F	C	rts_dev_pwr_completion_for_DFx
.text:000000014012CC40	00000079	C	%I64d (%d) %s : powerContext->DeviceObject is 0x%p, DeviceObject is 0x%p,deviceExtension->PhysicalDeviceObject is 0x%p \n
.text:000000014012CCC0	00000030	C	%I64d (%d) %s : For power up, queue work item \n
.text:000000014012CCF0	00000041	C	%I64d (%d) %s : For power up, cannot alloc memory for work item\n
.text:000000014012CD40	00000038	C	%I64d (%d) %s : ===><=== PoFxCompleteDirectedPowerDown\n
.text:000000014012CD80	0000002D	C	%I64d (%d) %s : Set Power Failed, resume IO\n

.text:000000014012CDB0	00000018	C	DirectedPowerUpCallback
.text:000000014012CDD0	0000003A	C	%I64d (%d) %s : ===><=== -> PoFx DirectedPowerUpCallback\n
.text:000000014012CE10	0000003A	C	%I64d (%d) %s : Failed to alloc memory for powerContext \n
.text:000000014012CE50	0000003E	C	%I64d (%d) %s : DirectedPowerUpCallback SetPower to D0 fail \n

.text:000000014012CE90	0000001A	C	DirectedPowerDownCallback
.text:000000014012CEB0	0000003C	C	%I64d (%d) %s : ===><=== -> PoFx DirectedPowerDownCallback\n
.text:000000014012CEF0	0000002E	C	%I64d (%d) %s : Set enter_rtd3 to 1 for DFx \n
.text:000000014012CF20	00000040	C	%I64d (%d) %s : DirectedPowerDownCallback SetPower to D3 fail \n

.text:000000014012CF60	00000012	C	rts_register_pofx
.text:000000014012CF80	00000035	C	%I64d (%d) %s : supportPoFx=0, do not register PoFx\n
.text:000000014012CFC0	00000033	C	%I64d (%d) %s : ===><=== PoFx already registered!\n
.text:000000014012D000	00000042	C	%I64d (%d) %s : ===><=== Invalid PoFx routines, pls check again!\n
.text:000000014012D050	00000037	C	%I64d (%d) %s : ===><=== OS Ver: size %d, %d.%d.%d.%d\n
.text:000000014012D090	00000033	C	%I64d (%d) %s : ===><=== Register PO_FX_DEVICE_V3\n
.text:000000014012D0D0	00000033	C	%I64d (%d) %s : ===><=== Register PO_FX_DEVICE_V2\n
.text:000000014012D110	00000038	C	%I64d (%d) %s : ===><=== PoFxRegisterDevice return %#x\n

.text:000000014012D150	00000014	C	rts_unregister_pofx
.text:000000014012D170	0000002F	C	%I64d (%d) %s : ===><=== PoFxUnregisterDevice\n
.text:000000014012D1A0	00000020	C	rts_pnp_fdo_start_dev_delaywork
.text:000000014012D1C0	0000002E	C	%I64d (%d) %s : rts_create_childen_pdos fail\n
.text:000000014012D1F0	00000039	C	%I64d (%d) %s : Start after stop,so no need create pdos\n
.text:000000014012D230	00000039	C	%I64d (%d) %s : IoSetDeviceInterfaceState:enable:failed\n
.text:000000014012D270	00000039	C	%I64d (%d) %s : ===><=== PoFxStartDevicePowerManagement\n

//以下是PNP回调的函数体实现，rts_pnp_fdo_xxx

//对应PNP: IRP_MN_START_DEVICE
.text:000000014012D3E0	00000016	C	rts_pnp_fdo_start_dev
.text:000000014012D400	0000001C	C	rts_pnp_fdo_cancel_stop_dev
.text:000000014012D420	0000002F	C	%I64d (%d) %s : Cancel stop after query stop \n
.text:000000014012D450	00000073	C	%I64d (%d) %s : spurious cancel-stop without query stop first,we still pass it down,Irp->IoStatus.Status is 0x%x \n

//对应PNP: IRP_MN_WAIT_WAKE?
.text:000000014012D4D0	00000019	C	rts_pnp_wait_d0_complete
.text:000000014012D4F0	0000003F	C	%I64d (%d) %s : 0 == fdx->CancelSSIsCalling, return directly \n
.text:000000014012D530	00000037	C	%I64d (%d) %s : Wait cancel ss finished for the %ith \n

//对应PNP: IRP_MN_STOP_DEVICE
.text:000000014012D570	00000015	C	rts_pnp_fdo_stop_dev
.text:000000014012D590	00000044	C	%I64d (%d) %s : KeWaitForSingleObject NoSSDpcWorkItemPendingEvent \n
.text:000000014012D5E0	0000003B	C	%I64d (%d) %s : IoSetDeviceInterfaceState::disable:failed\n

.... //略

Import页面查看导入的符号，都是WDM （NTOS kernel）的符号链接：

Address	Ordinal	Name	Library

cng
0000000140138010		BCryptSetProperty	cng
0000000140138018		BCryptCloseAlgorithmProvider	cng
0000000140138020		BCryptGenerateSymmetricKey	cng
0000000140138028		BCryptGenerateKeyPair	cng
0000000140138030		BCryptEncrypt	cng
0000000140138038		BCryptExportKey	cng
0000000140138040		BCryptGetProperty	cng
0000000140138048		BCryptFinalizeKeyPair	cng
0000000140138050		BCryptDestroyKey	cng
0000000140138058		BCryptDestroySecret	cng
0000000140138060		BCryptSecretAgreement	cng
0000000140138068		BCryptDeriveKey	cng
0000000140138070		BCryptGenRandom	cng
0000000140138078		BCryptImportKeyPair	cng
0000000140138080		BCryptOpenAlgorithmProvider	cng

ntoskrnl
0000000140138090		KeReadStateEvent	ntoskrnl
0000000140138098		KeReleaseSemaphore	ntoskrnl
00000001401380A0		KeWaitForMultipleObjects	ntoskrnl
00000001401380A8		KeWaitForSingleObject	ntoskrnl
00000001401380B0		ExAllocatePoolWithTag	ntoskrnl
00000001401380B8		ExRaiseStatus	ntoskrnl
00000001401380C0		ProbeForWrite	ntoskrnl
00000001401380C8		MmProbeAndLockPages	ntoskrnl
00000001401380D0		MmMapLockedPagesSpecifyCache	ntoskrnl
00000001401380D8		IoAllocateMdl	ntoskrnl
00000001401380E0		IofCallDriver	ntoskrnl
00000001401380E8		IofCompleteRequest	ntoskrnl
00000001401380F0		IoFreeMdl	ntoskrnl
00000001401380F8		IoIs32bitProcess	ntoskrnl
0000000140138100		IoCsqInsertIrp	ntoskrnl
0000000140138108		IoCsqRemoveNextIrp	ntoskrnl
0000000140138110		__C_specific_handler	ntoskrnl
0000000140138118		wcscat_s	ntoskrnl
0000000140138120		wcscpy_s	ntoskrnl
0000000140138128		wcsncpy_s	ntoskrnl
0000000140138130		RtlInitAnsiString	ntoskrnl
0000000140138138		RtlInitUnicodeString	ntoskrnl
0000000140138140		RtlQueryRegistryValues	ntoskrnl
0000000140138148		MmGetSystemRoutineAddress	ntoskrnl
0000000140138150		RtlAnsiStringToUnicodeString	ntoskrnl
0000000140138158		RtlFreeUnicodeString	ntoskrnl
0000000140138160		RtlCompareMemory	ntoskrnl
0000000140138168		KeInsertQueueDpc	ntoskrnl
0000000140138170		KeSetEvent	ntoskrnl
0000000140138178		KeDelayExecutionThread	ntoskrnl
0000000140138180		KeAcquireSpinLockRaiseToDpc	ntoskrnl
0000000140138188		KeReleaseSpinLock	ntoskrnl
0000000140138190		ExFreePoolWithTag	ntoskrnl
0000000140138198		MmBuildMdlForNonPagedPool	ntoskrnl
00000001401381A0		IoDeleteDevice	ntoskrnl
00000001401381A8		IoAllocateWorkItem	ntoskrnl
00000001401381B0		IoFreeWorkItem	ntoskrnl
00000001401381B8		IoQueueWorkItem	ntoskrnl
00000001401381C0		IoInvalidateDeviceRelations	ntoskrnl
00000001401381C8		IoOpenDeviceRegistryKey	ntoskrnl
00000001401381D0		ObReferenceObjectByHandle	ntoskrnl
00000001401381D8		ObfDereferenceObject	ntoskrnl
00000001401381E0		ZwCreateFile	ntoskrnl
00000001401381E8		ZwClose	ntoskrnl
00000001401381F0		ZwCreateKey	ntoskrnl
00000001401381F8		ZwOpenKey	ntoskrnl
0000000140138200		ZwDeleteKey	ntoskrnl
0000000140138208		ZwEnumerateKey	ntoskrnl
0000000140138210		ZwFlushKey	ntoskrnl
0000000140138218		ZwQueryKey	ntoskrnl
0000000140138220		ZwQueryValueKey	ntoskrnl
0000000140138228		ZwSetValueKey	ntoskrnl
0000000140138230		ZwPowerInformation	ntoskrnl
0000000140138238		ObQueryNameString	ntoskrnl
0000000140138240		swprintf_s	ntoskrnl
0000000140138248		strncpy_s	ntoskrnl
0000000140138250		DbgPrint	ntoskrnl
0000000140138258		PsGetCurrentThreadId	ntoskrnl
0000000140138260		KfRaiseIrql	ntoskrnl
0000000140138268		IoBuildPartialMdl	ntoskrnl
0000000140138270		RtlGetVersion	ntoskrnl
0000000140138278		RtlIsNtDdiVersionAvailable	ntoskrnl
0000000140138280		KeInitializeDpc	ntoskrnl
0000000140138288		KeInitializeEvent	ntoskrnl
0000000140138290		KeInitializeSemaphore	ntoskrnl
0000000140138298		KeInitializeTimerEx	ntoskrnl
00000001401382A0		IoAttachDeviceToDeviceStack	ntoskrnl
00000001401382A8		IoDetachDevice	ntoskrnl
00000001401382B0		IoRegisterShutdownNotification	ntoskrnl
00000001401382B8		IoCsqInitialize	ntoskrnl
00000001401382C0		IoRegisterDeviceInterface	ntoskrnl
00000001401382C8		ExFreePool	ntoskrnl
00000001401382D0		MmMapIoSpace	ntoskrnl
00000001401382D8		MmUnmapIoSpace	ntoskrnl
00000001401382E0		ZwEnumerateValueKey	ntoskrnl
00000001401382E8		KeCancelTimer	ntoskrnl
00000001401382F0		IoBuildDeviceIoControlRequest	ntoskrnl
00000001401382F8		IoDisconnectInterrupt	ntoskrnl
0000000140138300		IoGetAttachedDeviceReference	ntoskrnl
0000000140138308		IoUnregisterShutdownNotification	ntoskrnl
0000000140138310		IoSetDeviceInterfaceState	ntoskrnl
0000000140138318		PoRequestPowerIrp	ntoskrnl
0000000140138320		PoSetPowerState	ntoskrnl
0000000140138328		ObfReferenceObject	ntoskrnl
0000000140138330		ExUuidCreate	ntoskrnl
0000000140138338		KeSetTimerEx	ntoskrnl
0000000140138340		IoCancelIrp	ntoskrnl
0000000140138348		PoCallDriver	ntoskrnl
0000000140138350		PoStartNextPowerIrp	ntoskrnl
0000000140138358		PsCreateSystemThread	ntoskrnl
0000000140138360		PsTerminateSystemThread	ntoskrnl
0000000140138368		KeAcquireSpinLockAtDpcLevel	ntoskrnl
0000000140138370		KeReleaseSpinLockFromDpcLevel	ntoskrnl
0000000140138378		MmUnlockPages	ntoskrnl
0000000140138380		MmAllocateContiguousMemory	ntoskrnl
0000000140138388		MmFreeContiguousMemory	ntoskrnl
0000000140138390		IoAllocateIrp	ntoskrnl
0000000140138398		IoBuildSynchronousFsdRequest	ntoskrnl
00000001401383A0		IoConnectInterrupt	ntoskrnl
00000001401383A8		IoFreeIrp	ntoskrnl
00000001401383B0		IoGetDmaAdapter	ntoskrnl
00000001401383B8		IoGetDeviceProperty	ntoskrnl
00000001401383C0		MmGetPhysicalAddress	ntoskrnl
00000001401383C8		RtlUnicodeToMultiByteN	ntoskrnl
00000001401383D0		KeClearEvent	ntoskrnl
00000001401383D8		KeQueryActiveProcessors	ntoskrnl
00000001401383E0		KeBugCheckEx	ntoskrnl
00000001401383E8		ZwSetSecurityObject	ntoskrnl
00000001401383F0		IoDeviceObjectType	ntoskrnl
00000001401383F8		IoCreateDevice	ntoskrnl
0000000140138400		ObOpenObjectByPointer	ntoskrnl
0000000140138408		RtlGetDaclSecurityDescriptor	ntoskrnl
0000000140138410		RtlGetGroupSecurityDescriptor	ntoskrnl
0000000140138418		RtlGetOwnerSecurityDescriptor	ntoskrnl
0000000140138420		RtlGetSaclSecurityDescriptor	ntoskrnl
0000000140138428		SeCaptureSecurityDescriptor	ntoskrnl
0000000140138430		_snwprintf	ntoskrnl
0000000140138438		RtlLengthSecurityDescriptor	ntoskrnl
0000000140138440		SeExports	ntoskrnl
0000000140138448		RtlCreateSecurityDescriptor	ntoskrnl
0000000140138450		_wcsnicmp	ntoskrnl
0000000140138458		wcschr	ntoskrnl
0000000140138460		RtlAbsoluteToSelfRelativeSD	ntoskrnl
0000000140138468		RtlAddAccessAllowedAce	ntoskrnl
0000000140138470		RtlLengthSid	ntoskrnl
0000000140138478		IoIsWdmVersionAvailable	ntoskrnl
0000000140138480		RtlSetDaclSecurityDescriptor	ntoskrnl
0000000140138488		ExAllocatePoolWithQuotaTag	ntoskrnl
0000000140138490		PsGetVersion	ntoskrnl
0000000140138498		ZwQuerySystemInformation	ntoskrnl
00000001401384A0		KeLowerIrql	ntoskrnl

HAL
0000000140138000		KeStallExecutionProcessor	HAL

结论：根据.sys的分析，此驱动是纯WDM实现的。因为内核接口全部调用WDM/NT kernel接口，完全没有调用微软的miniport框架例如Storport, SDHC，SDBUS框架封装后的接口。

但微软已不推荐WDM驱动开发，参考：Introduction to WDM 。新驱动优先使用KMDF框架。

参考文章

https://voidsec.com/windows-drivers-reverse-engineering-methodology/#remote-kernel-debugging

https://blog.csdn.net/qq_24481913/article/details/131643283

https://learn.microsoft.com/en-us/windows-hardware/drivers/kernel/

ThinkNotes

Windows Driver -- 通过IDA逆向分析.sys
